Database Backup and Restore
RealityHub stores your Rgraphs (*.rgraph), Actions (*.rha), and Forms (*.jxd) inside the dbdata folder in the following default file path:
C:\ProgramData\Zero Density\RealityHub
Database Backup
To back up your database:

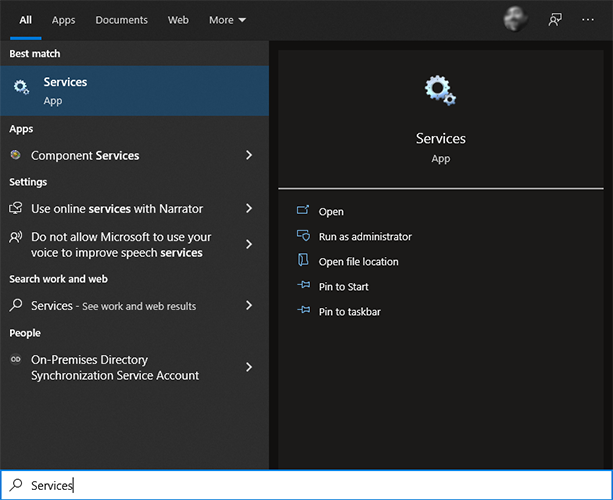

Go to Windows > Services
Right-click on the RealityHub Database service and select the stop
Right-click on the RealityHub Service service and select the stop
Go to C:\ProgramData\Zero Density\RealityHub
Copy and paste the dbdata and backups folder to a different directory for restoring.

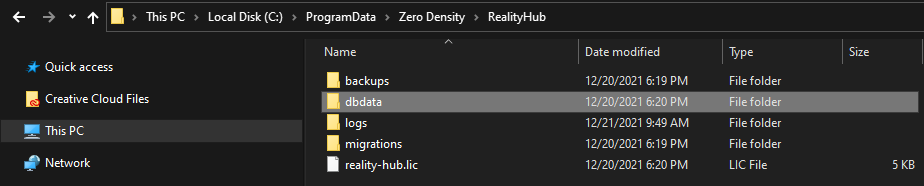

The image above shows the default dbdata folder path. If you change the database folder path during the Installation and Configuration, make sure that you check that specific folder path.
Database Restore
Please keep that in mind; restoring a database is possible with matching RealityHub versions. Trying to restore different versions of backups, such as from 1.2 to 1.3, may disrupt RealityHub’s functionality.
To restore your database:
Stop all the Engines and quit from RealityHub
Go to Windows > Services
Stop the RealityHub Database and RealityHub Service
Go to the C:\ProgramData\Zero Density\RealityHub
Delete the freshly installed dbdata and backups folders and paste your backup.
Go to Windows > Services
Start the RealityHub Database and RealityHub Service
