Form Builder Interface

PreviousForm BuilderNextForm Builder Components

Last updated 1 year ago

1. Components: Building blocks to create data-driven content.

2. New Form: Creates a new Template Form

3. Form Management Buttons:

  • Chanel Settings: This function allows you to assign channels to the Form.

  • Import: You can import your Template Forms via this button

  • Export: This button exports your current Template Form as a *.JXD file.

  • Copy JXD: Copies the Form structure and logic to the clipboard in JSON format, so you can embed this JSON into your Blueprint as a string variable called JXD. When you launch your project, the Form will be imported automatically to RealityHub. This feature lets you ship your Forms to different systems with your Unreal *.uproject.

  • Open: Opens a template form

  • Save: This button saves your current Template Form

4. Form Builder Menu:

  • New: Creates a new Template Form

  • Open: Open an existing Template Form from the RealityHub database

  • Import: Imports saved Template Form

  • Export: Imports current Template Form

  • Copy JXD: Copies the Form structure and logic to the clipboard in JSON format, so you can embed this JSON into your Blueprint as a string variable called JXD. When you launch your project, the Form will be imported automatically to RealityHub. This feature lets you ship your Forms to different systems with your Unreal *.uproject.

  • Save: Saves current Template Form.

  • Save As: Save a current Template Form as a different file

  • Chanel Settings: This function allows you to assign channels to various forms.

  • Delete: Deletes current Template Form from database

5. Form Area: You can drag & drop your Components, Actions, and Properties to this area.

6. Expand: A button for opening and collapsing components module

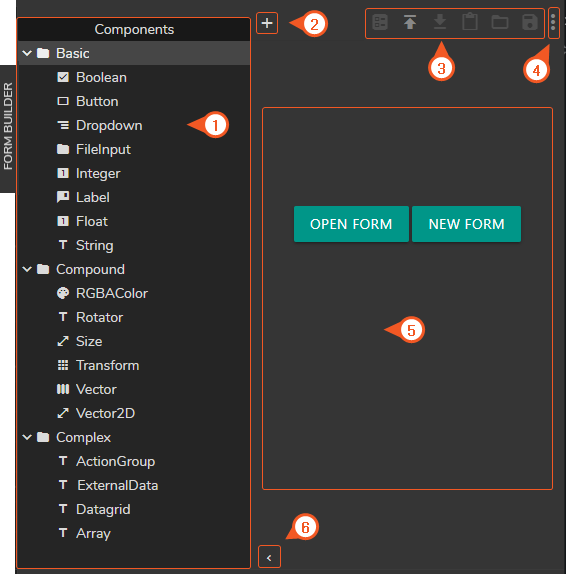

Form Builder UI

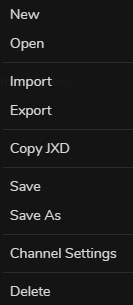

Form Builder Menu
