General Engine Configuration

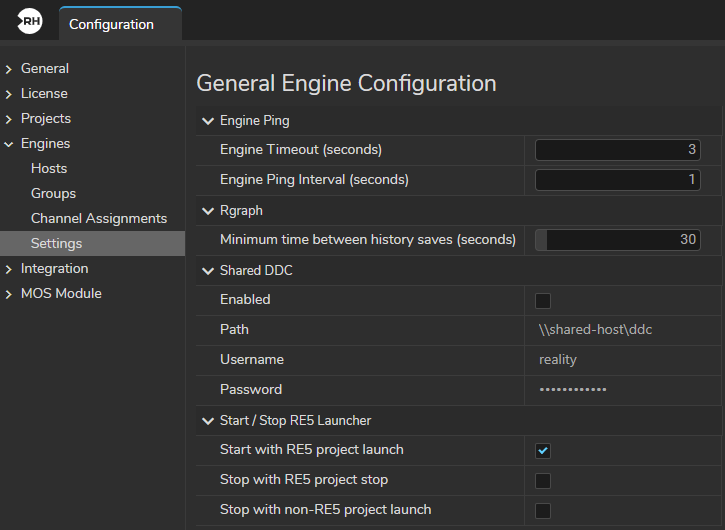

General Engine Configuration consist of the following sections, as shown above:
Engine Ping
Engine Timeout (seconds): It is the place where you define the period of Engine timeout; in other words, it refers to the duration that Reality Hub waits for a response from the Engine before identifying changes in its state.
Engine Ping Interval (seconds): Defines the length of time the Reality Hub waits between ping packets.
RGpraph
This setting allows you to define the minimum time between history saves.
Shared DDC
Shared DDC (Derived Data Cache) is a network drive that all Engines can read/write derived data. Reality Hub allows you to define which storage your Engines will use for the derived data cache by defining a UNC Path. It can log in to the Shared DDC network through your Username and Password.
Enabled: When you activate the Enabled checkbox, your Engines reach your Shared DDC and can read/write.
Path: Area for defining the UNC Path for Shared DDC.
Username and Password: Administrative credentials of the computer your Derived Data Cache is located.
Please remember that the Path you define must be a UNC Path.
Your Engines must have administrative rights to reach the Shared DDC.
For more details about Shared DDC, please visit:
https://dev.epicgames.com/documentation/en-us/unreal-engine/derived-data-cache
Reality 5
In Reality 5 terminology, RE5 Launcher refers to a process that is necessary to lunch Reality 5.3. You can think of it as a mediator process between Reality 5.3.x and Reality Hub 1.4.x.
In the context of General Engine Configuration, Reality 5 section allows you to modify how your environment will be launch.

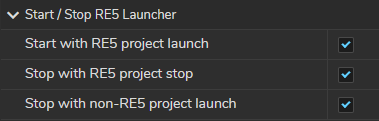

Start with RE5 project launch: When this option is enabled, Reality Hub will launch your Reality 5.3 project with the Nodos. If you disable it, mediator application will not start automatically.
Stop with RE5 project stop: When this option is enabled, Reality Hub will stop the mediator process when you stop the Reality 5.3.x project.
Stop with non-RE5 project launch: When this option is enabled, Reality Hub will stop the mediator process when you launch your project with an Engine different than 5.3.x such as Reality 4.27 or Unreal Engine Vanilla 5.2.x.
