Triggering Multiple Actions via Single Button

Main goal of this section is changing state of Character Blueprint, load a level with Level Streaming and change the color of Spotlight Control blueprint simultaneously with a single click.

In this section, we will be utilizing MainLevel map of the RealityExample, the project shipped with Reality 5.3 SP3.

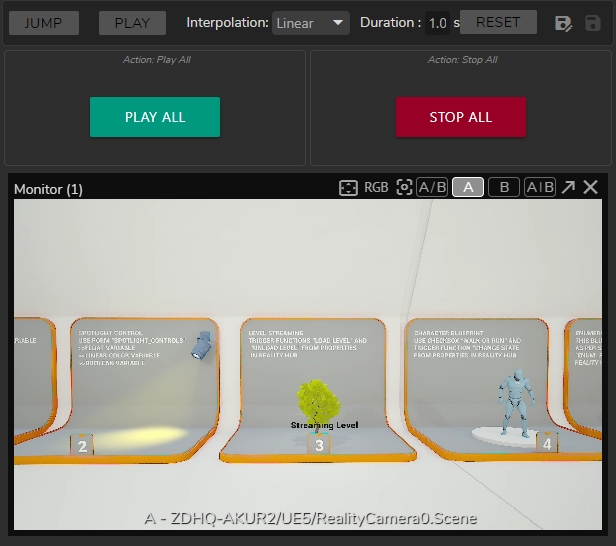

It is possible to trigger multiple actions with a single button.

Preparation

  • Launch the RealityExample project.

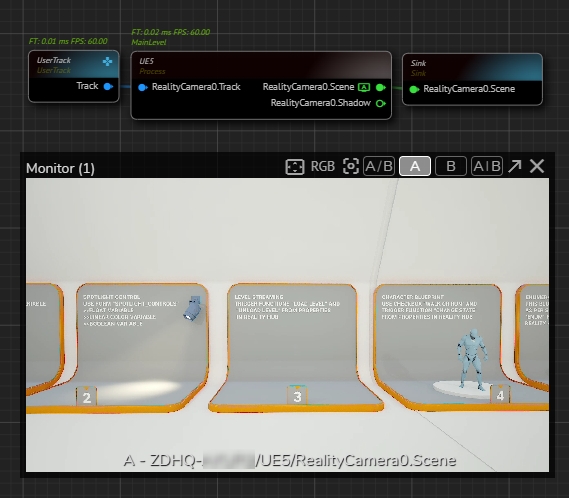

  • Create a node tree and activate the APM, as shown in the image above.

  • Change the camera angle to a suitable position to observe changes by using GamePad feature.

Creating Actions

  • Create a new Action, rename it to something like Play All.

  • Select the UE5 node, go to Node Details Panel.

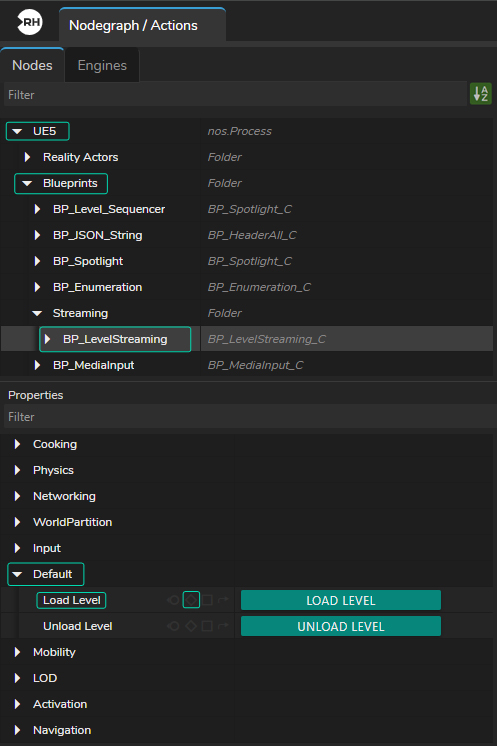

  • Expand the UE5 folder, then go to Blueprints > and select the BP_LevelStreaming.

  • Go to Properties panel, expand the Default.

  • Click on the Add Timeline button of the Load Level property, as illustrated above.

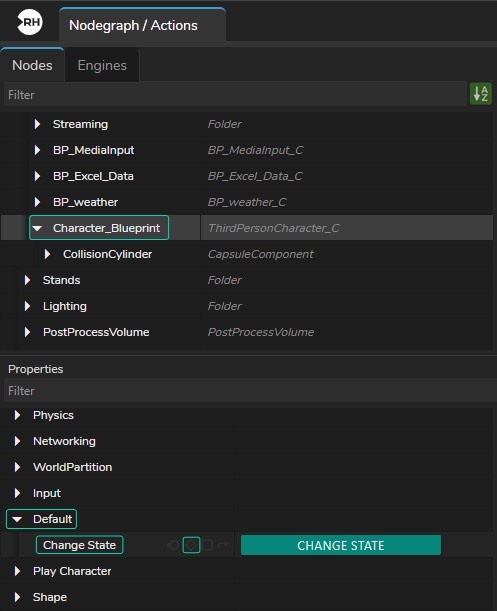

  • By inheriting the previous method, add the Chane State property of the Character Blueprint into the timeline, as shown in the image above.

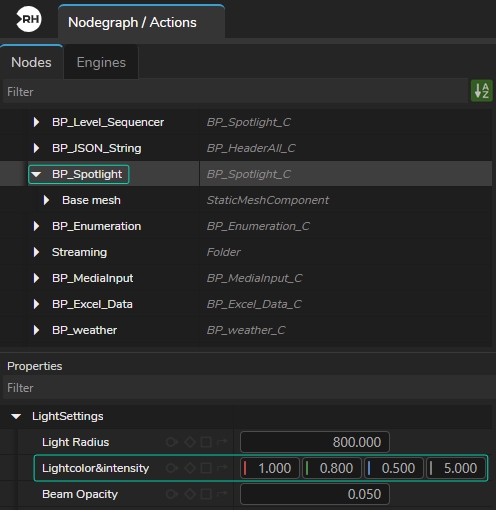

  • Add the Lightcolor&intensity property of the BP_Spotlight into the timeline, as shown in the image above.

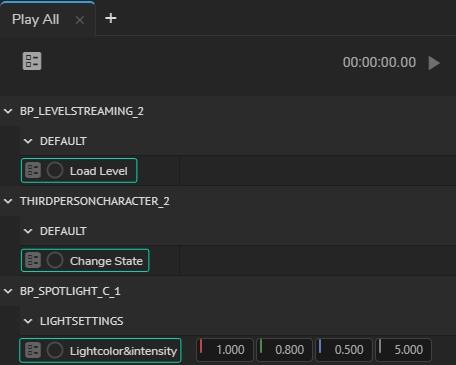

We added Load Level, Change State and Light Color & Intensity properties to the Action Timeline, as illustrated above.

Animation

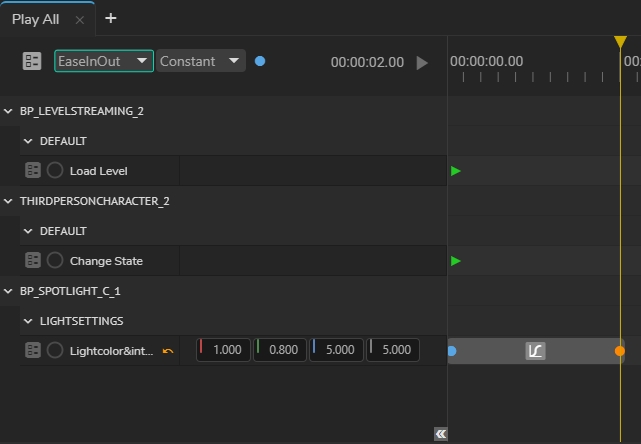

  • Go to first frame and add keyframe to each property.

  • Go to second 2, change the Blue value of Lightcolor&intensity from 0.500 to 5.000

  • Add a keyframe to Light Color & Intensity, change its interpolation type to EaseInOut, as illustrated above.

  • Save the action.

Reversing Animation

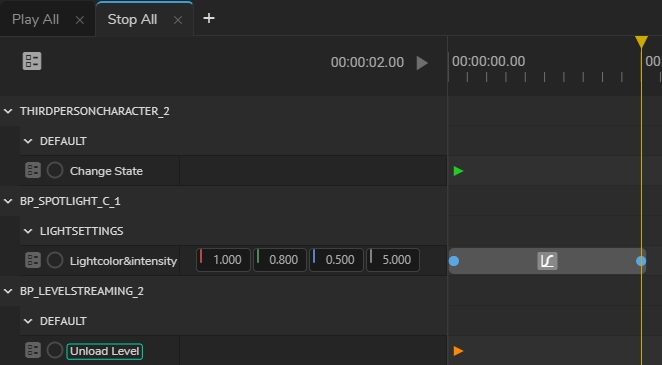

  • Create a new Action, rename it to something like Stop All.

  • Add Unload Level, Change State and Lightcolor&intensity properties to the Action Timeline.

  • Go to first frame and add keyframe to each property.

  • Go to second 2, change the Blue value of Lightcolor&intensity from 5.000 to 0.500.

  • Add a keyframe to Lightcolor&intensity, change its interpolation type to EaseInOut.

  • Save the action.

Creating Template Form

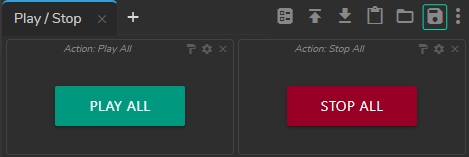

  • Activate the Form Builder and create a new template form.

  • Go to the first Action, click & hold your left mouse button on the Action Play button, drag & drop it into Form Area.

  • Repeat the same procedure for the second action.

  • Save the Template Form, as illustrated above.
