Exporting Lens Calibration

PreviousExporting Custom Material NodeNextExporting Post Process Material

Last updated 2 years ago

Lens data information can be exported into Reality Setup by using Camera Exporting section under Reality Exports tab.

Implementation

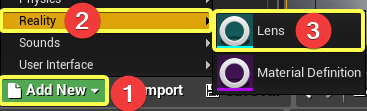

  • Click ADD NEW → REALITY → LENS Content Browser.

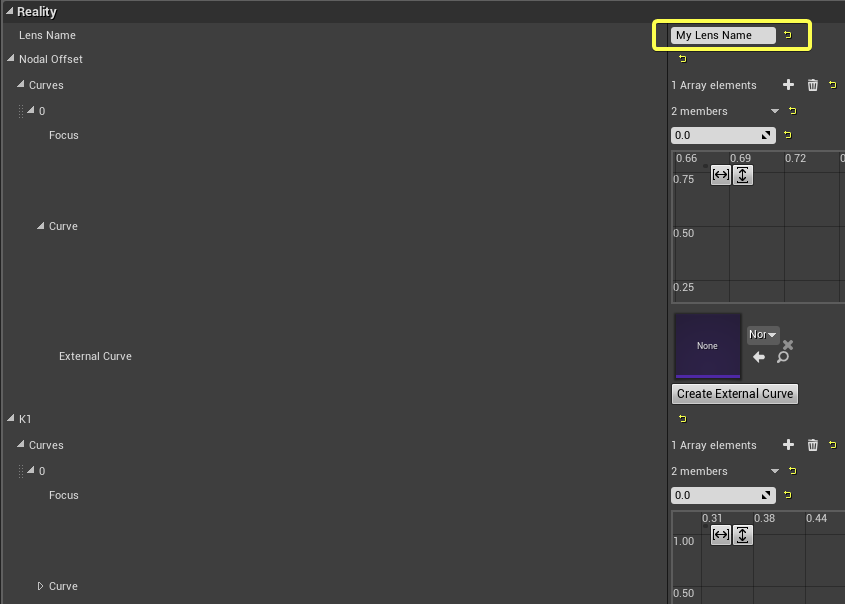

  • Rename lens data as MyLens and double click on it. You can implement LensData information regrading to your specific lens information.

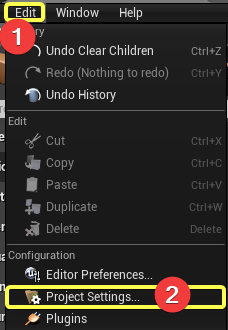

  • Click EDIT → PROJECT SETTINGS from top menu.

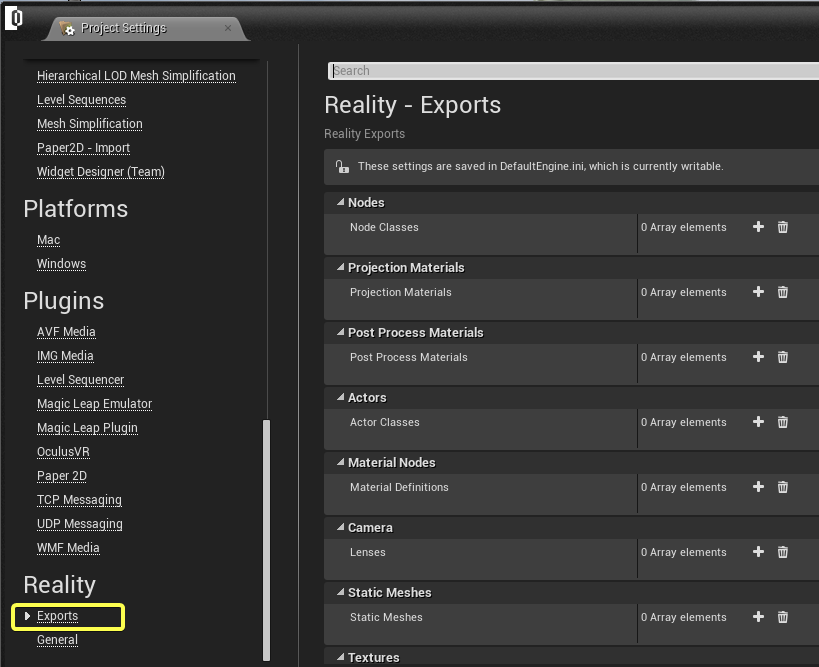

  • Scroll down, Click Exports under Reality category.

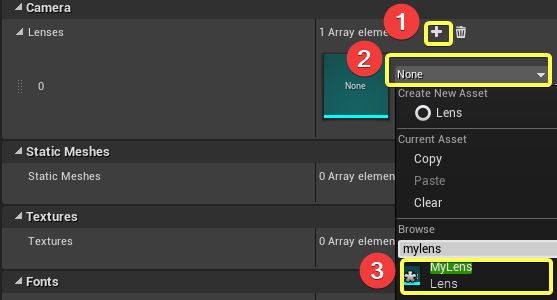

  • Click âž• button. Select the lens you created.

  • Launch the Reality Control and press F7 to launch Reality Setup. Click PLAY on Reality Editor. On the nodegraph:

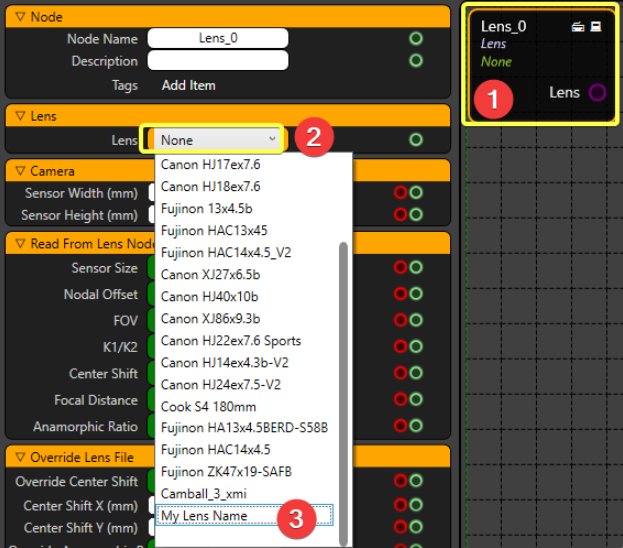

  • Click the Lens Node, under Lens Category, you can choose lens data that you exported.
