Adding Host

In Reality Hub terminology, a Host refers to a server configuration that hosts an Engine; in other words, it is the computer you install the Reality Engine/Unreal Engine Vanilla.

ReallityHub uses different port numbers to communicate with different Engines. Here are the default port numbers:

• Reality 4.27: 6666

• Unreal Engine Vanilla: 30020

• Reality 5.1: 50052

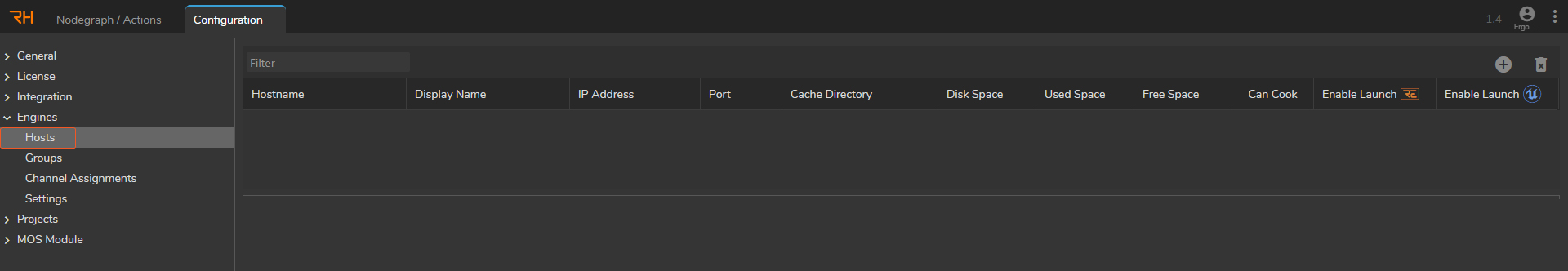

Hosts Section

The image above shows the default Hosts interface. To add a Host:

• Go to Main Menu > Configuration

• Select the Hosts under the Engines

To find your hostname:

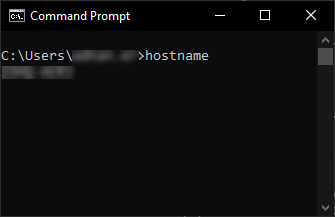

Windows Command Prompt Window

• Run the Command Prompt on your Windows

• Type hostname and click enter

• Copy your hostname

Now:

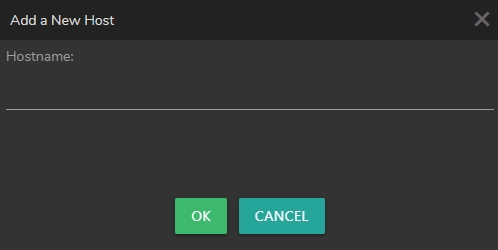

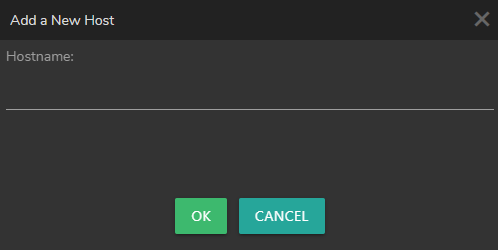

New Host Window

• Turn back to the Hosts configuration inside the Reality Hub .

• Click ➕ to Add a New Host.

• Paste the Host Name you copied earlier.

• Click on the OK button.

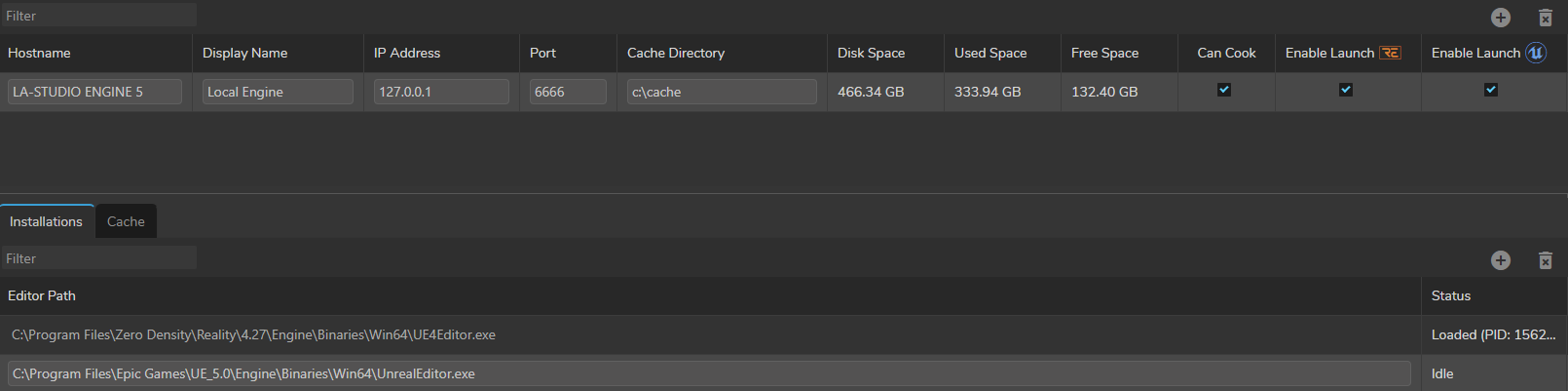

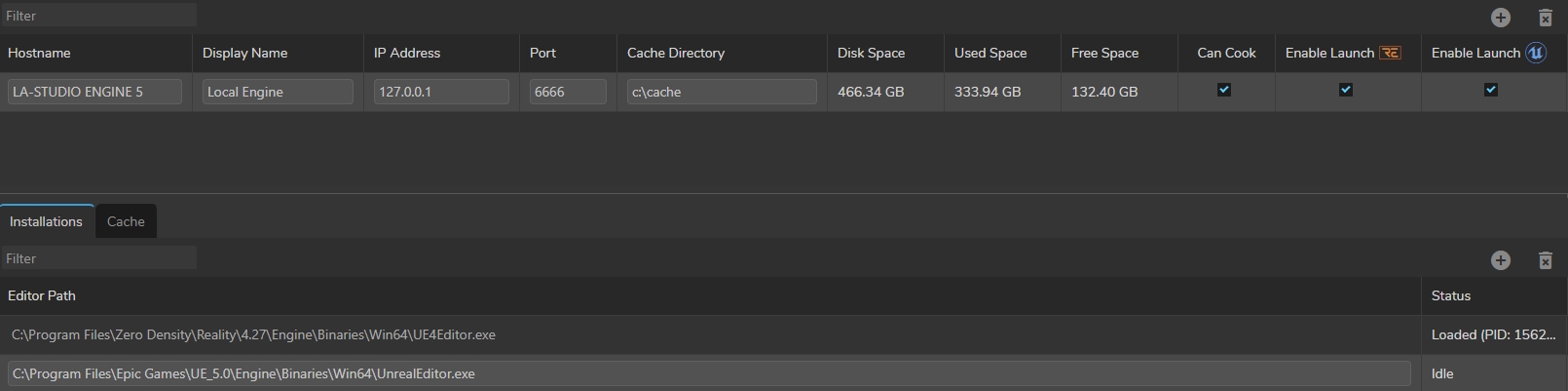

Hosts

Reality Hub adds a default Display Name, IP Address, Port, Cache Directory, and Installations as soon as you define a hostname, as shown in the example image above.

Display Name: You can define a specific name for your Host to organize your setup better. Your computer’s hostname (in our case, it’s LA-STUDIO ENGINE 5) might not help recognize the purpose of your Engine.

To set an example, if you are utilizing multiple engines in a studio, you might prefer to define a specific name for your Hosts, such as Studio A, Camera B, etc.

Please remember that the Host Name refers to a server’s hostname; it must belong to your server configuration.

• IP Address: IP address of the server you installed the Engine.

• Port: 6666 is the default port for the Reality Engine. If you changed the port number during the installation, you must provide that specific port number.

• Cache Directory: A directory you can use for caching your Projects

• Can Cook: Disabling and enabling the Cook operation for your Engines. See Cook Manager

• Enable Launch: This option gives you the ability to specify which Engine can be launched. You can choose both Reality Engine and Unreal Engine Vanilla at the same time.

• Installations: It is the Engine Installation directory where UE4Editor.exe/UnrealEditor.exe is located in. You can choose or redefine the directory of your Engine installation.

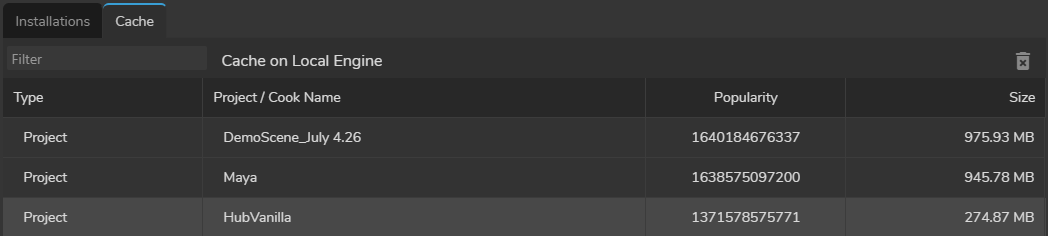

Cache Window

As shown in the image above, you can manage your cache files in the Hosts sections.

IP Addresses or names on the images above are for illustrative purposes only.
