Operating Gang Mode
This page was written for a previous version of Reality and has not been updated for the current Reality 5.3 release.
The following example contains three different Engines, as shown in the image above. All three Engines have the following setup in common:
Engines are launched with the same Unreal Project (*.uproject)
Engines are running in Configuration Mode
Engines have no RGraph

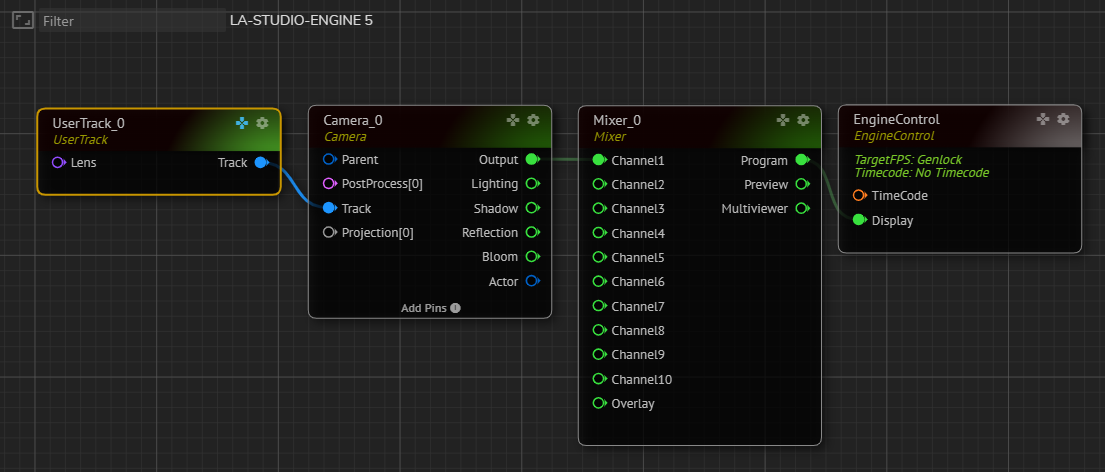

Create the node tree as shown on the image above by following connections:
EngineControl
node’sDisplay
input pin toMixer_0
node’sProgram
output pinMixer_0
node’sChannel1
input pin toCamera_0
node’sOutput
pinCamera_0
node’sTrack
input pin toUserTrack_0
node’sTrack
pin
The node tree is ready.
Now:
Select the node tree except for the
EngineControl
by clicking and holding your left mouse button and dragging over theUserTrack_0
,Camera_0
, andMixer_0
nodesCopy the node tree you selected by pressing CTRL + C on your keyboard
Go to the Engine Toolbar, choose Engine02
Paste the node tree you copied earlier into Engine02’s Nodegraph by clicking CTRL + V on your keyboard
Connect the
Mixer_0
node’sProgram
output pin toDisplay
input of theEngineControl
node inside the Engine02Go to the Engine Toolbar, select Engine03
Paste the node tree you copied earlier into Engine03’s Nodegraph by clicking CTRL + V on your keyboard
Connect the
Mixer_0
node’sProgram
output pin toDisplay
input of theEngineControl
node inside the Engine03
Please remember that Gang Mode is a Nodegraph operation requiring identical Node types with the same name.

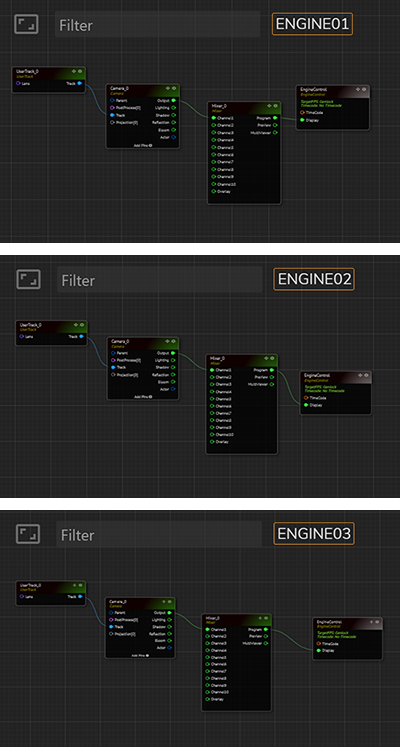

All three Engines have the same RGraph construction, as shown in the image above.
Now:
Activate the Gang Mode you learned in the earlier section
Select the
UserTrack_0
node located inside the Engine01Go to
Input
properties of theUserTrack_0

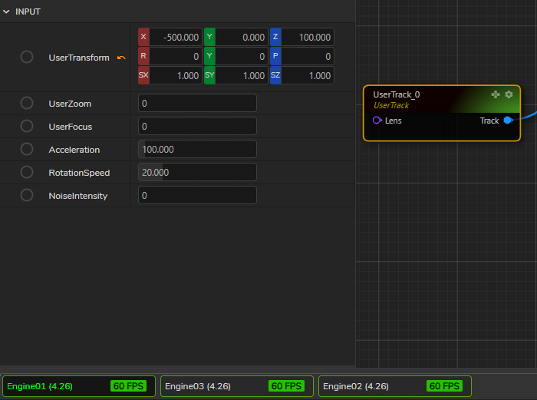

Change the
User Transform
X
value from -500 to -400

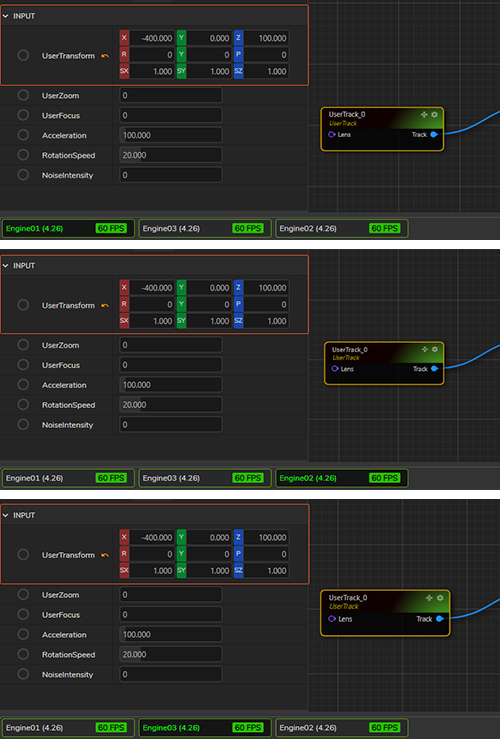

Since all three Engines are included in the Gang Mode, the change you made in the User Transform
X
value is reflected in the Nodegraph of the Engine01 and the Engine03, as shown in the image above.
